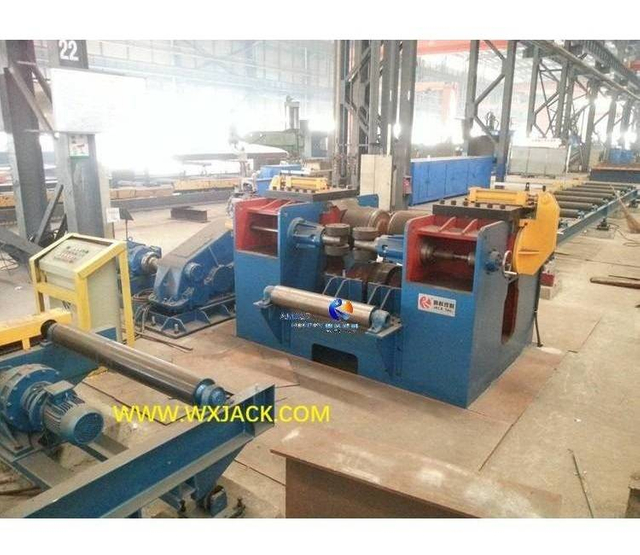

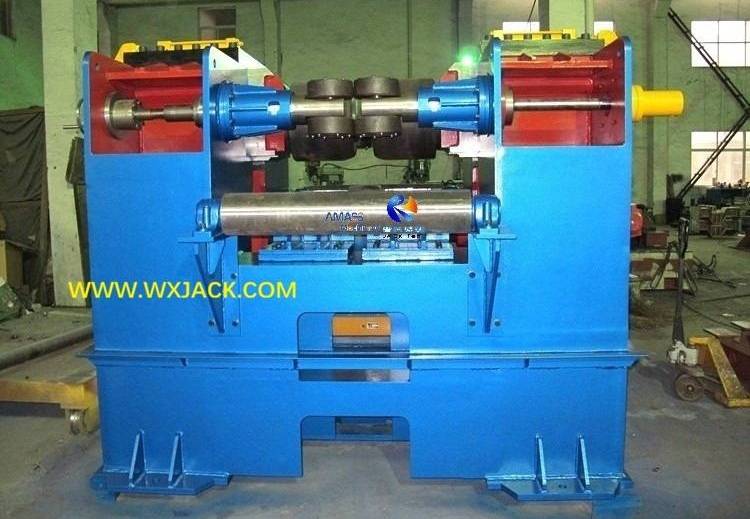

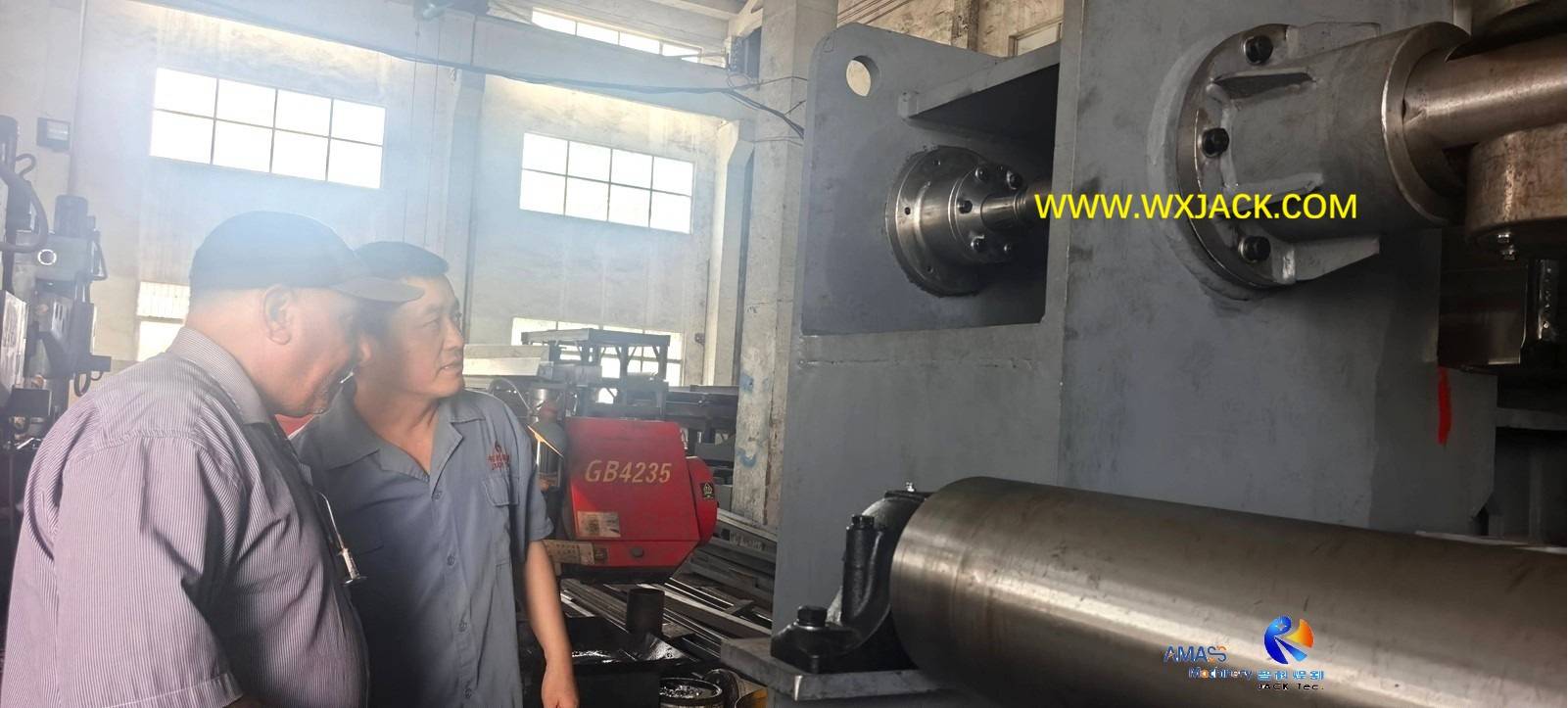

1 Hydraulic Heavy duty H Beam Straightening Machine 2

Wuxi JACK I H Beam Flange Straightening Machine, the Most Powerful Steel Structure Straightening Tool for Customer!

Navigation Bar in “I H Beam Flange Straightening Machine”

Important Usage and Scope of I H Beam Flange Straightening Machine

A. Why do Steel Structure Customers need I H Beam Flange Straightening Machine:



1) Origin: In the process of welding H Beam production, H Beam flanges usually generate deformation after SAW (Submerged arc welding) welding caused from heat input, which should be flattened in special purpose I H Beam Straightening Machine;
2) Working Process: By means of moving through I H Beam Flange Straightening Machine, flanges of the fabricated H Beam got flattened, and the entire piece of H Beam can be off line from H Beam Production Line as finished product for Steel Structure use;

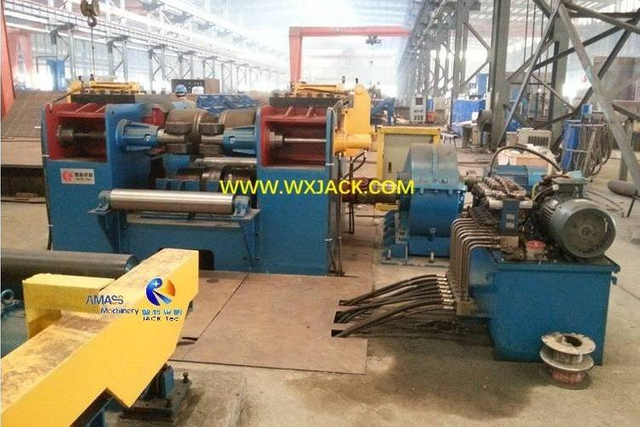

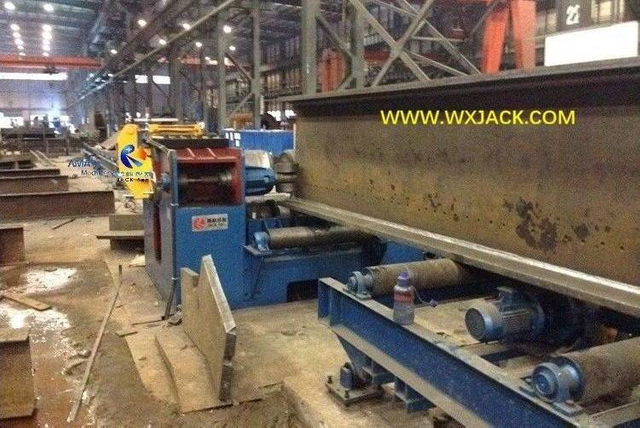

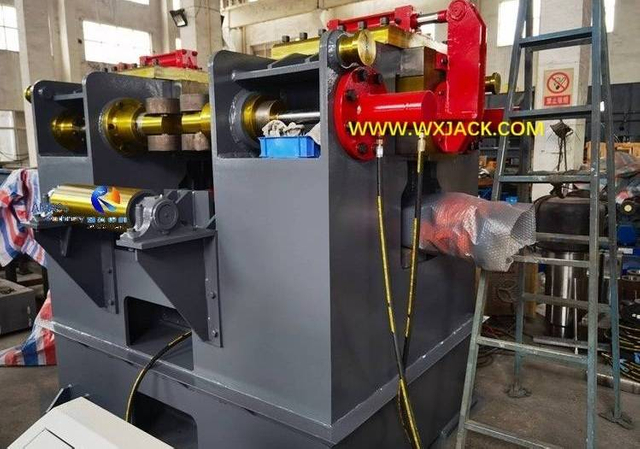

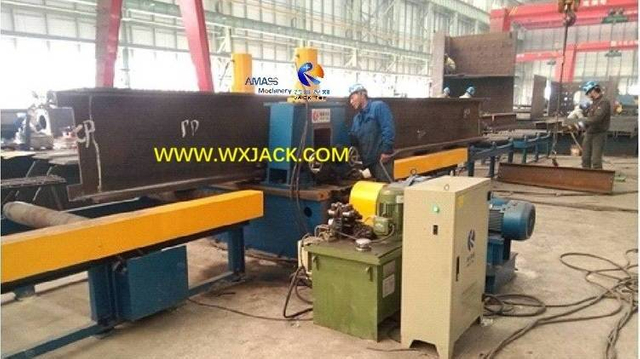

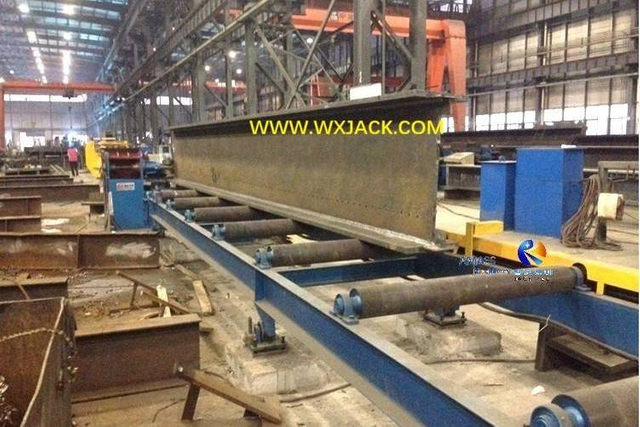

A set of Wuxi JACK YTJ-40 Hydraulic drive I H Beam Flange Straightening Machine is in work: (Fig.1)

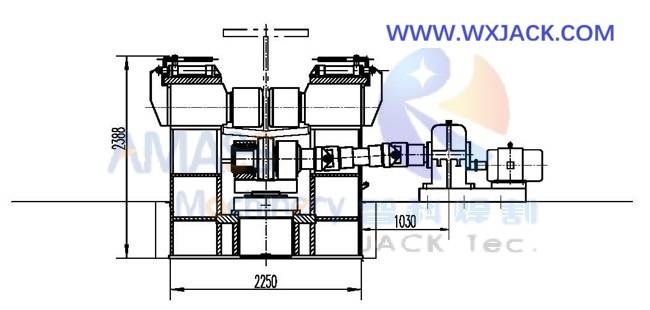

Fig1 H Beam Flange Straightening Machine 18


3) Applicating Volume: Taking over 70%~ 80% applicating cases of I H Beam Straightening Machine, various forms of I H Beam Flange Straightening Machine is the largest selling volume product of its equipment category.



B. Scope and Working Capacity of Wuxi JACK I H Beam Flange Straightening Machine:


1. 2 Main Workpiece Orientations of I H Beam Flange Straightening Machine:

Based on H Beam position during straightening process, H Beam Straightening Machine can be divided into two general groups of:
1) Vertical orientation I H Beam Straightening Machine --- Account for over 90% of total share;

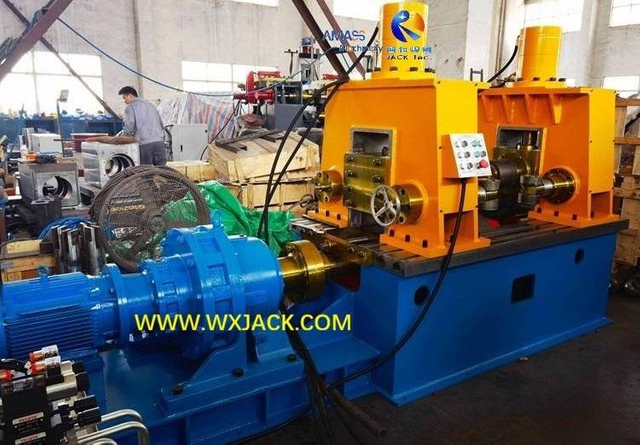

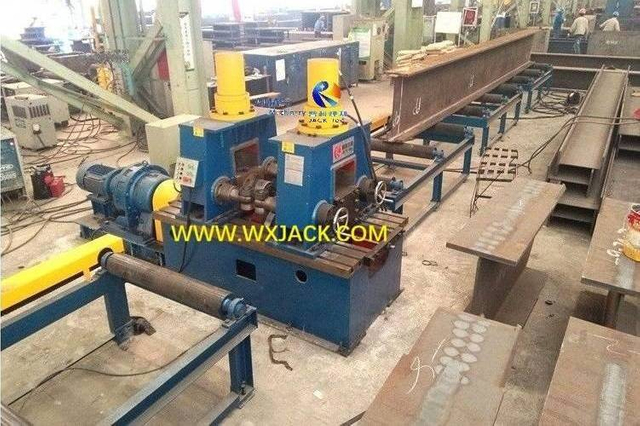

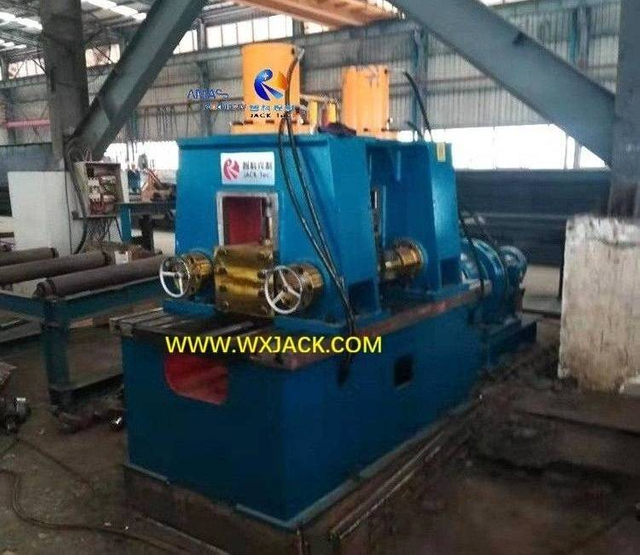

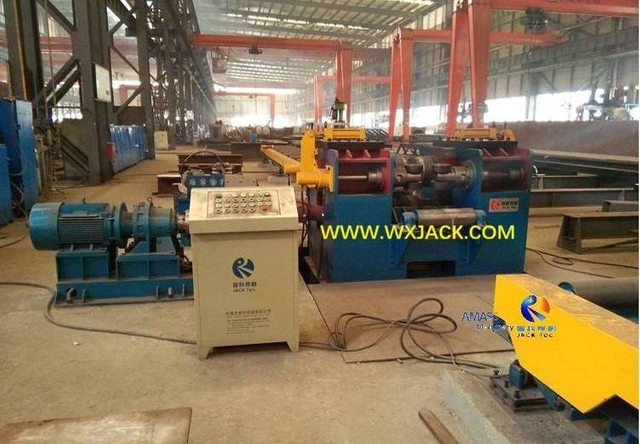

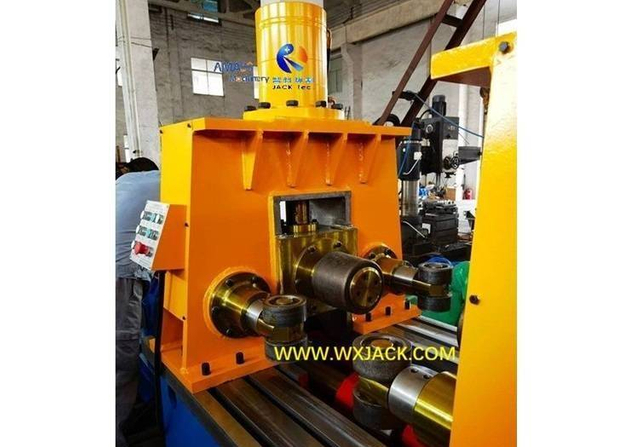

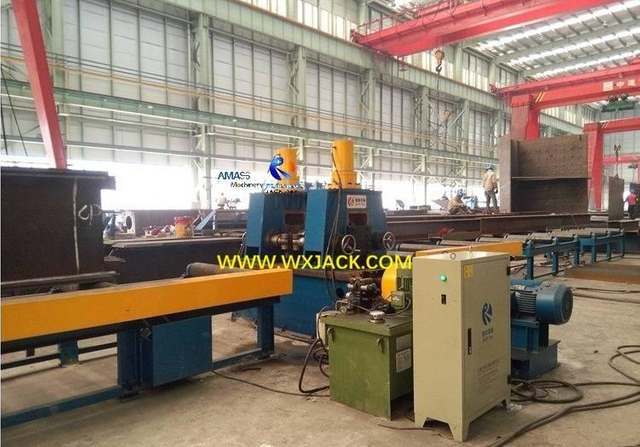

Wuxi JACK YTJ-60 hydraulic drive vertical orientation I H Beam Flange Straightening Machine works at customer workshop: (Fig.2)

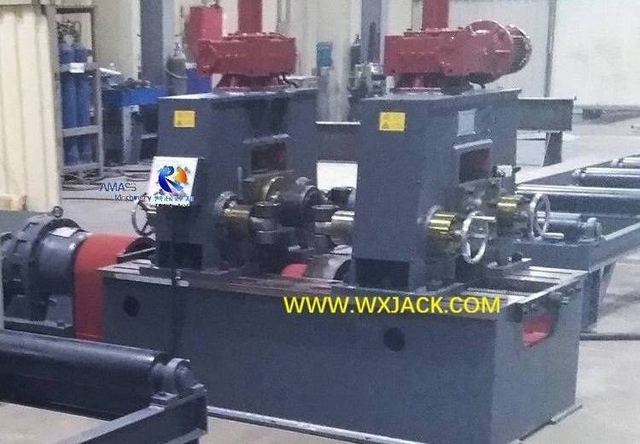

Fig2 Vertical H Beam Straightening Machine 4 -_20210624180517

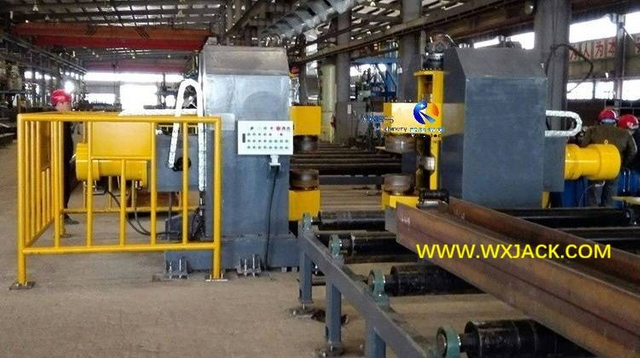

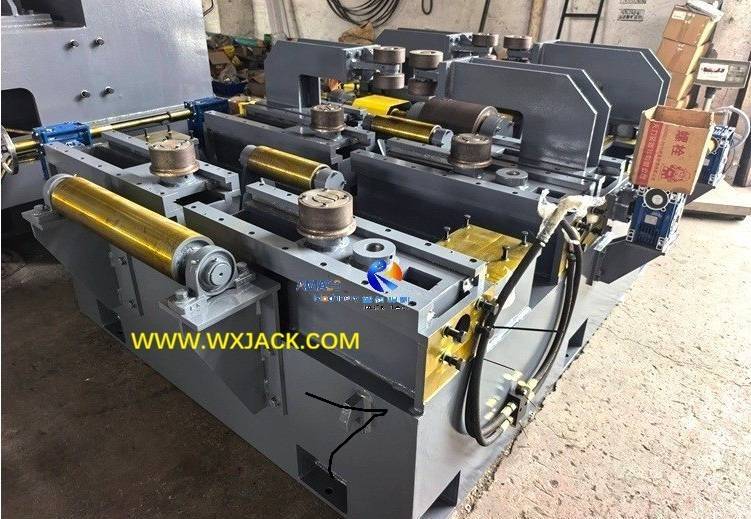

2) Horizontal Orientation I H Beam Straightening Machine --- Small percentage of actual use:

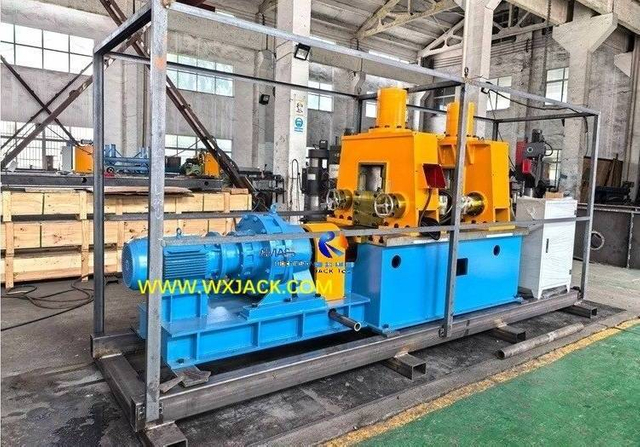

Wuxi JACK WJ-25 hydraulic drive horizontal orientation I H Beam Flange Straightening Machine works at customer facility: (Fig.3)

Fig3 Horizontal H Beam Straightening Machine 2

2. Subdivision on 2 Main Driving Forms of Vertical Orientation I H Beam Straightening Machine:

Going further, the Vertical orientation I H Beam Straightening Machine has 2 branches of motor drive and hydraulic drive:
1) Motor drive I H Beam Flange Straightening Machine is fitting for straightening conventional specifications of welding H Beam. It can straighten Q235-A carbon steel (Tensile strength 370~ 510 MPa) in the thickness range of 6~ 40mm;
2) Hydraulic drive belongs to heavy duty I H Beam Flange Straightening Machine. Its max. straightening capacity can be up to Q345-A carbon steel (Tensile strength 510~ 600 MPa) in the thickness range of 6~ 80mm;
3. In all, there is always the most fitting structure and specifications of I H Beam Flange Straightening Machine, which is applicable for every customer selection;

4. Another General Group of I H Beam Straightening Machine:

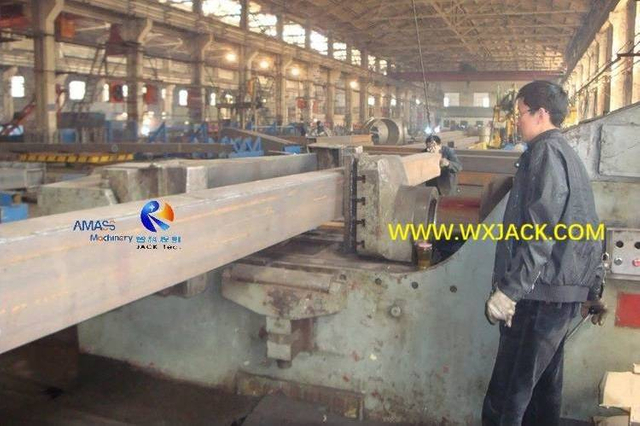

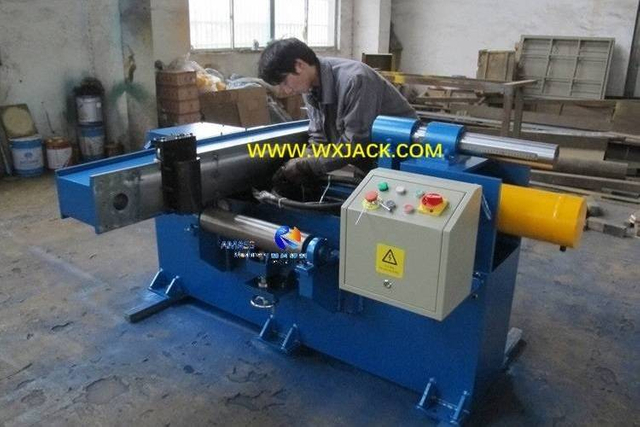

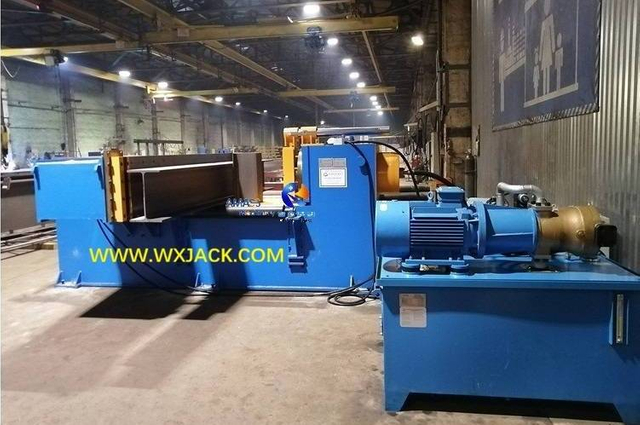

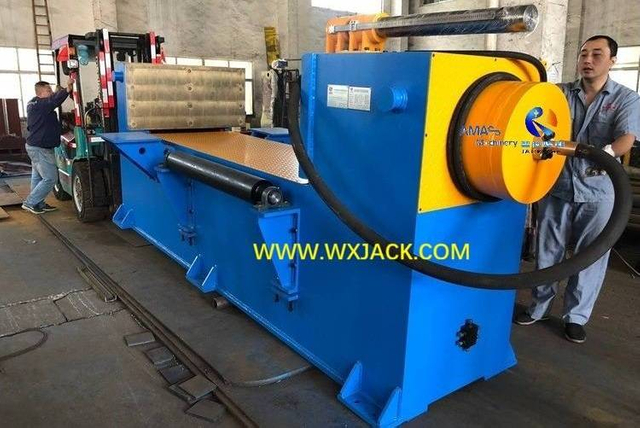

1) Differently, HJ series Horizontal Press I H Beam Longitudinal Straightening Machine is used for straightening deformation along the entire length of welding H Beam:

2) Indication on types of deformed H Beam being applicable for horizontal press I H Beam Longitudinal Straightening Machine: (Fig.4)

Fig4 Horizontal Press H Beam Longitudinal Straightening Machine _20220222202232

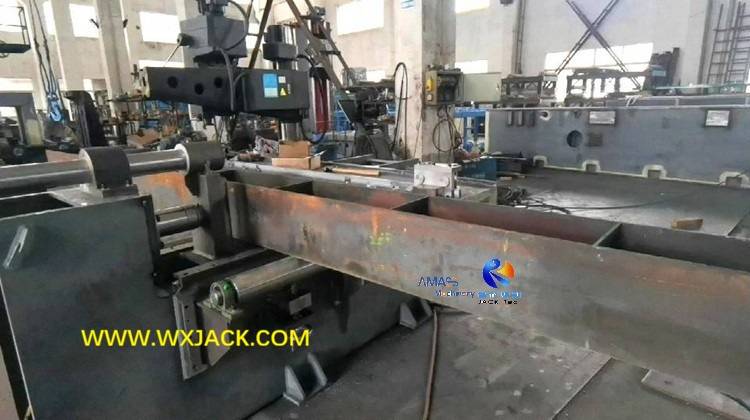

3) Wuxi JACK HJ-300 horizontal press I H Beam Longitudinal Straightening Machine is straightening on a piece of BOX Beam: (Fig.5)

Fig5 H Beam Horizontal Straightening Machine 1

5. For quick understanding on this superior product machinery of Wuxi JACK, please check product page of “Review on Wuxi JACK I H Beam Flange Straightening Machine”.

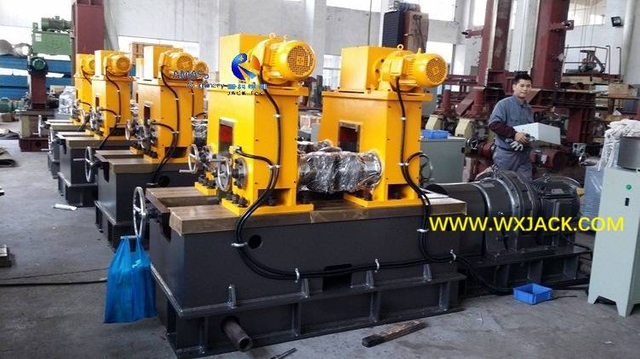

Various Types and Models of Wuxi JACK I H Beam Flange Straightening Machine

Value Chain of I H Beam Flange Straightening Machine

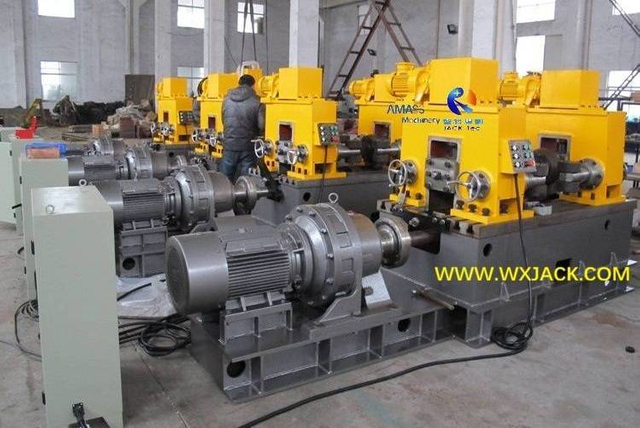

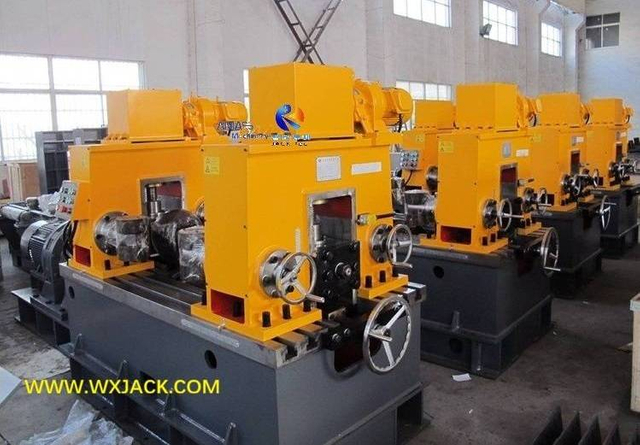

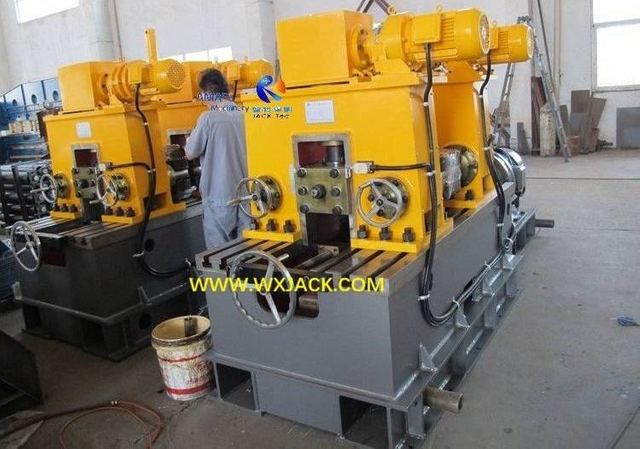

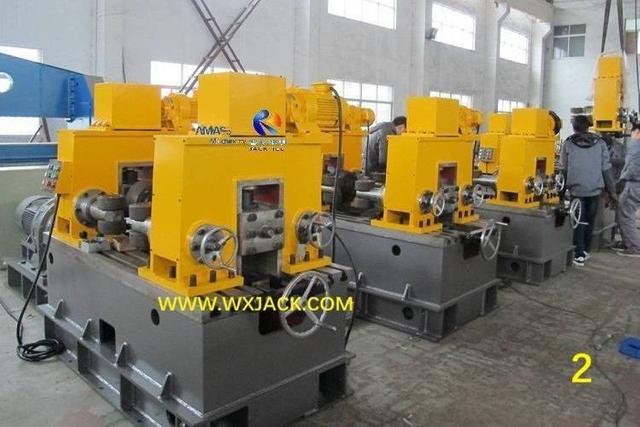

H Beam Flange Straightening Machine

1- 1 H Beam Flange Straightening Machine 20130925_143209
2 H Beam Flange Straightening Machine 2- 20131013_111113
3 H Beam Flange Straightening Machine 4- 20131013_111216
4 H Beam Flange Straightening Machine 7- 20131013_111303
5 H Beam Flange Straightening Machine 8- IMG_0107
6 H Beam Flange Straightening Machine 9- 20131228_095325
7 H Beam Flange Straightening Machine 9- IMG_0108
8 H Beam Flange Straightening Machine 14- _20210703102615

How to Select a Proper Model of I H Beam Flange Straightening Machine

1. Proper Selection on the Most Fitting Model of I H Beam Flange Straightening Machine:

Should meet below 3 pre-conditions of:

1) Max. straightening capacity of the I H Beam Straightening Machine;
2) Reasonable straightening efficiency that meets customer demand;
3) Suitable purchasing budget on I H Beam Flange Straightening Machine.



2. Sequence to Consider Proper Model of I H Beam Flange Straightening Machine:

1) Max. Straightening Capacity of the I H Beam Flange Straightening Machine:

This is weighted on the basis of:
a) Max. thickness of H Beam flange --- 40/ 50/ 60/ 80 mm;
b) Carbon steel grade, or tensile strength --- 370/ 510/ 600 MPa;

Max. straightening capacity of each model Wuxi JACK I H Beam Straightening Machine are summarized in below table:


 Model Applicable Material Max. Thickness
 HYJ40/ HYJ800 Mechanical drive Vertical Orientation
H Beam Straightening Machine
Q235, Tensile Strength
370~510 MPa
40 mm
 YTJ40/ 50/ 60/ 80 Hydraulic drive Vertical Orientation
H Beam Straightening Machine
Q345, Tensile Strength
510~600 MPa
40/ 50 /60 /80 mm
 WJ25/ 40 Hydraulic drive Horizontal Orientation
H Beam Straightening Machine
Q235, Tensile Strength
370~510 MPa
25/ 40 mm



2) Straightening Productivity of I H Beam Straightening Machine:

a) All models of I H Beam Flange Straightening Machine work in constant speed, with several variations of 6300/ 9000/ 17000 mm/min.;

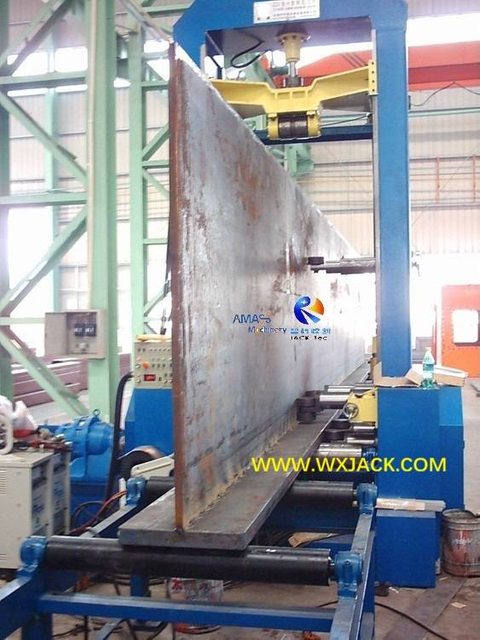

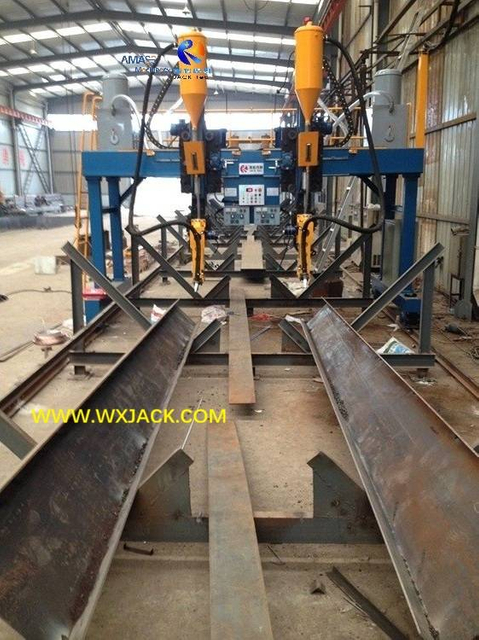

b) Correspondingly, H Beam Assembly Machine and H Beam SAW Welding Machine work in the pace of adjustable 240~ 2400 mm/min.;
c) So, I H Beam Flange Straightening Machine is not bottom neck in the process flow of H Beam Production Line;

3) Machine Price of I H Beam Flange Straightening Machine:

a) This is the reason why Horizontal orientation I H Beam Straightening Machine is not the recommended choice for customer;
b) Although it has 2 times straightening speed that of Vertical orientation I H Beam Straightening Machine, it also has double machine price;
c) Meanwhile, productivity usually is not an issue for I H Beam Straightening Machine.

Straightening Principle of Vertical Orientation I H Beam Flange Straightening Machine

No matter motor drive or hydraulic oil cylinder drive, straightening principle of Vertical orientation H Beam Flange Straightening Machine can be illustrated with below 4 very sketches:

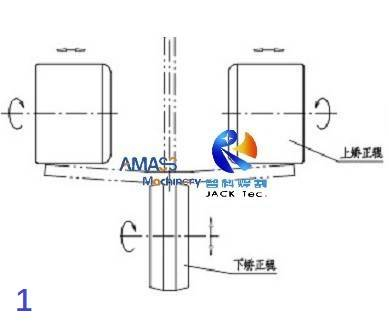

1. The 1st sketch: The General Basic Theory Applied in All Models of Vertical Orientation I H Beam Straightening Machine:

1) Three points being subjected to force, in a confined space, forming squeezing effect for flattening;
2) The bottom solid straightening roller is larger than 2 pieces of up straightening rollers. It revolves without elevation, serving as transmission forward of H Beam through I H Beam Straightening Machine;
3) The downward stroke movement of the 2 pieces of upper rollers generate sufficient squeezing force, straightening flange of H Beam;

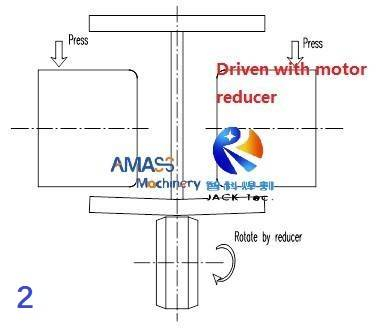

2. The 2nd sketch: Straightening Source in Motor Drive HYJ Series I H Beam Straightening Machine:

This gives illustration on where does the straightening power come from: 2 sets of 1.5kW A.C. motor, installed in symmetry right above the 2 pieces of upper straightening rollers;

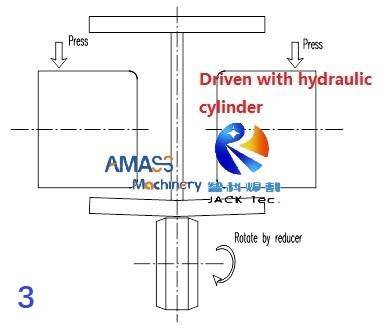

3. The 3rd sketch: Straightening Source in Medium duty Hydraulic Drive YTJ-40/50 I H Beam Straightening Machine:

This gives denotation on the straightening power source: 2 pieces of tailor made oil cylinder, also installed in symmetry right above the 2 pieces of upper straightening rollers;

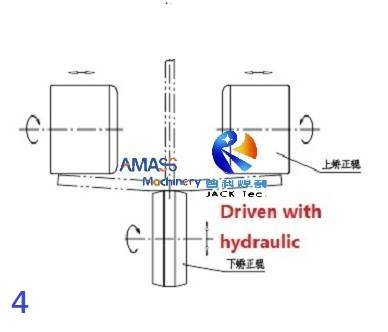

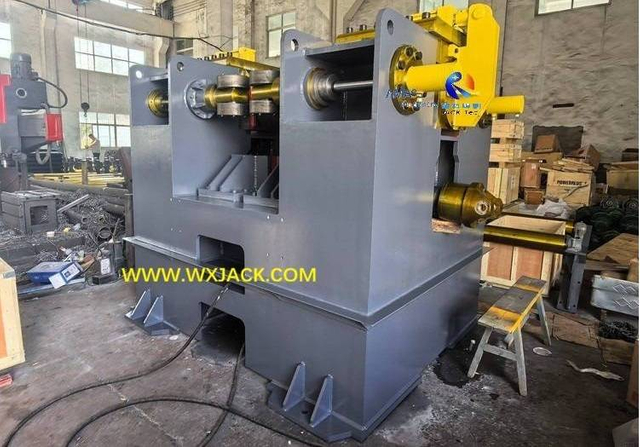

4. The 4th sketch: Heavy duty Hydraulic Drive YTJ-60/80 I H Beam Flange Straightening Machine:

1) Due to its necessary excessive heavy straightening force, the role of upper and bottom straightening rollers should be exchanged:
2) The bottom straightening roller will prop up H Beam flange, under the drive of oil cylinder.

Working Manner of Vertical Orientation I H Beam Flange Straightening Machine

Continued from the previous segment, in motor drive and hydraulic cylinder drive Vertical Orientation I H Beam Straightening Machine, the straightening principle is came into reality in the way of:

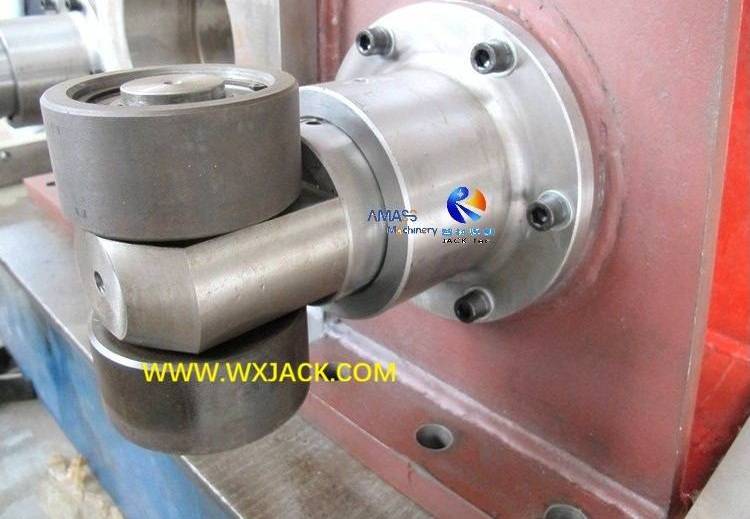

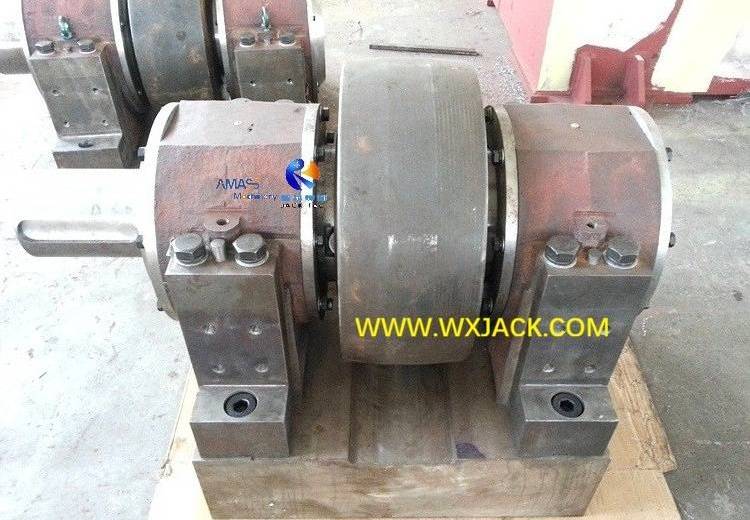

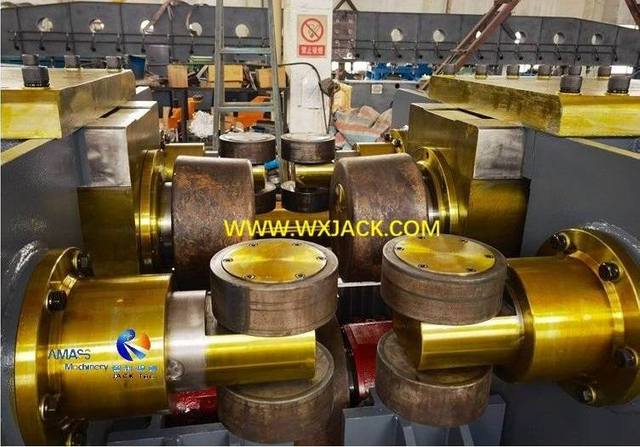

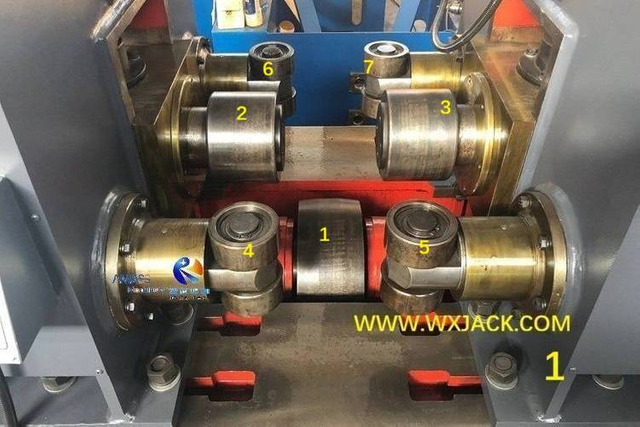

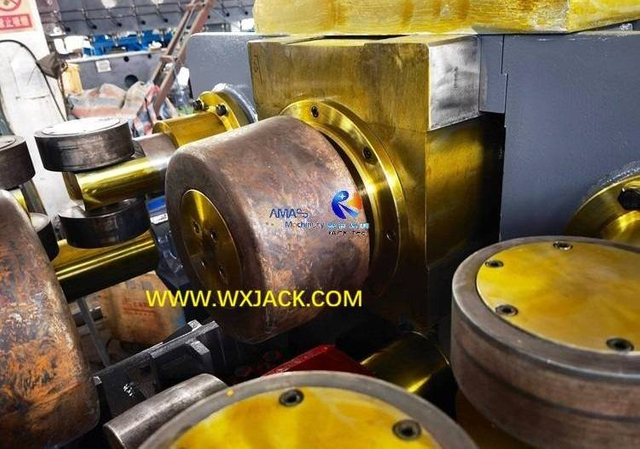

1. No.1 Photo: Straightening Cell in All Kinds of Vertical Orientation I H Beam Straightening Machine:

1) Roller “1” corresponds with the bottom straightening roller, and Rollers “2/3” correspond with the 2 pieces of upper straightening rollers discussed before;
2) Rollers “4/ 5/ 6/ 7” are for supporting and holding the vertical web of H Beam during working of the I H Beam Flange Straightening Machine;
3) General Structure: Such kind of arrangement on straightening and supporting rollers is true for both motor drive and hydraulic drive Vertical Orientation I H Beam Straightening Machine;

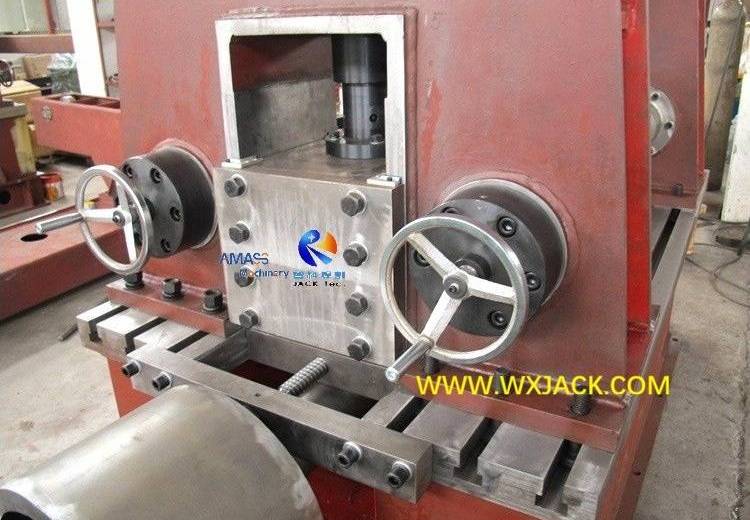

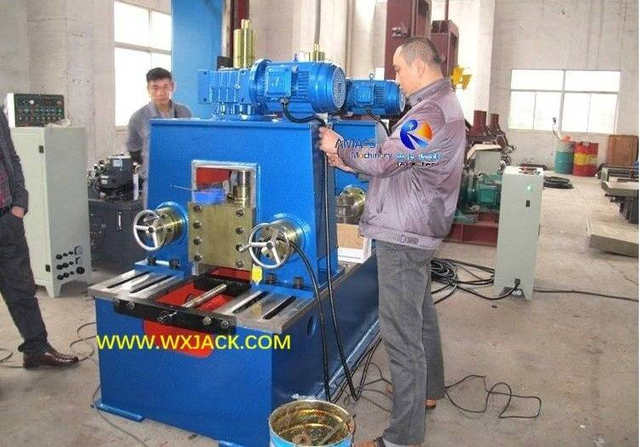

2. No.2 Photo: Roller Management in HYJ Series Motor Drive Vertical Orientation I H Beam Straightening Machine:

1) Accommodating H Beam Flange Width: In mechanical Vertical I H Beam Flange Straightening Machine, the distance between the left and right two pairs of rollers is adjusted manually by turning handwheel;
2) Guidance: Correspondingly, the 2 pieces of shaft boxes slide along slotting table of the Vertical I H Beam Straightening Machine;
3) Straightening Driving Force: The downward pressing of the 2 pieces of upper straightening rollers, which is the most important process control parameter in I H Beam Flange Straightening Machine, is driven with 1.5kW A.C. motor;
4) Precision Control: There are measurement rollers to display the actual position of roller span, as well as downward stroke of straightening rollers;

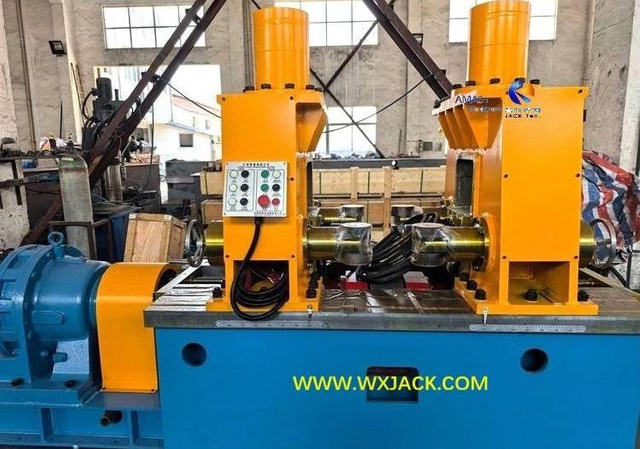

3. No.3 Photo: Rollers Management in Medium Level YTJ40/50 Hydraulic Vertical I H Beam Straightening Machine:

1) Accommodating H Beam Flange Width: The distance between the two pairs of rollers is also adjusted manually by means of handwheel;
2) Straightening Driving Force: The down pressing movement of the 2 pieces of upper straightening roller is driven with vertical mounted oil cylinders;

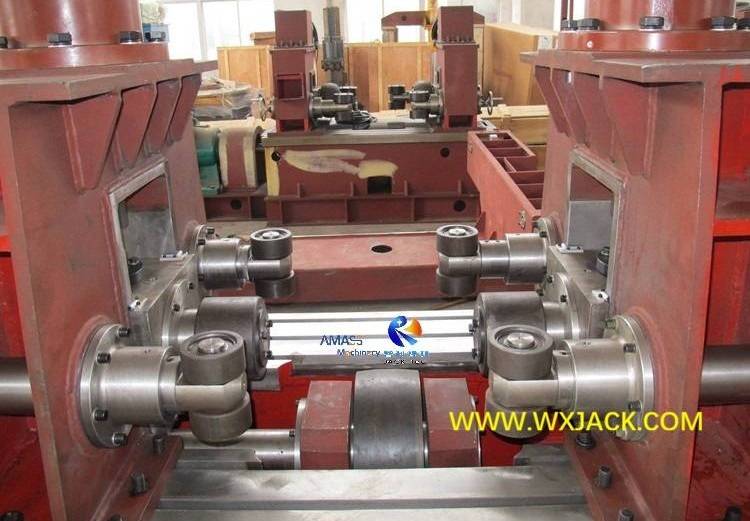

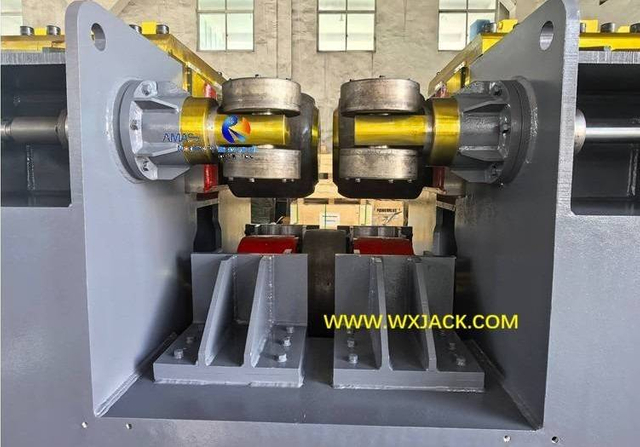

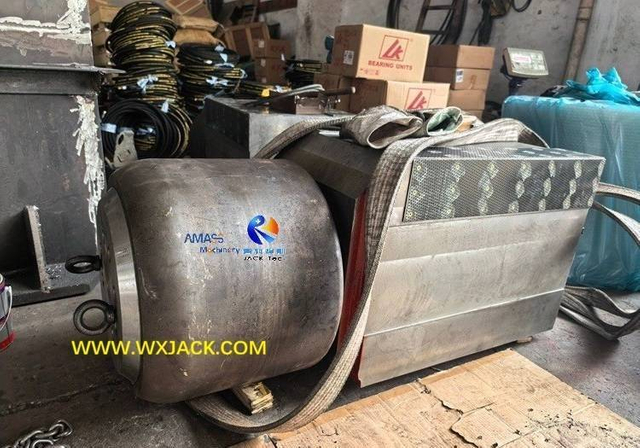

4. No.4 Photo: Rollers Management in Heavy Level YTJ60/80 Hydraulic Vertical I H Beam Straightening Machine:
1) Reversed Driving Action: The upward pressing movement of the bottom straightening roller is driven with oil cylinder;
2) Reversed Transmission Action: The 2 pieces of upper straightening roller keeps stationary, just in rotation;
3) Accommodating H Beam Flange Width: The distance between left and right rollers is driven with oil cylinders. This is the unique configuration in heavy duty YTJ-60/80 Hydraulic Vertical I H Beam Straightening Machine.







Putting into Use of Wuxi JACK I H Beam Flange Straightening Machine

Here we take the most popular model: HYJ-800 vertical orientation motor drive H Beam Straightening Machine as an example:



1. On Site Layout of Entire Group HYJ-800 I H Beam Flange Straightening Machine:



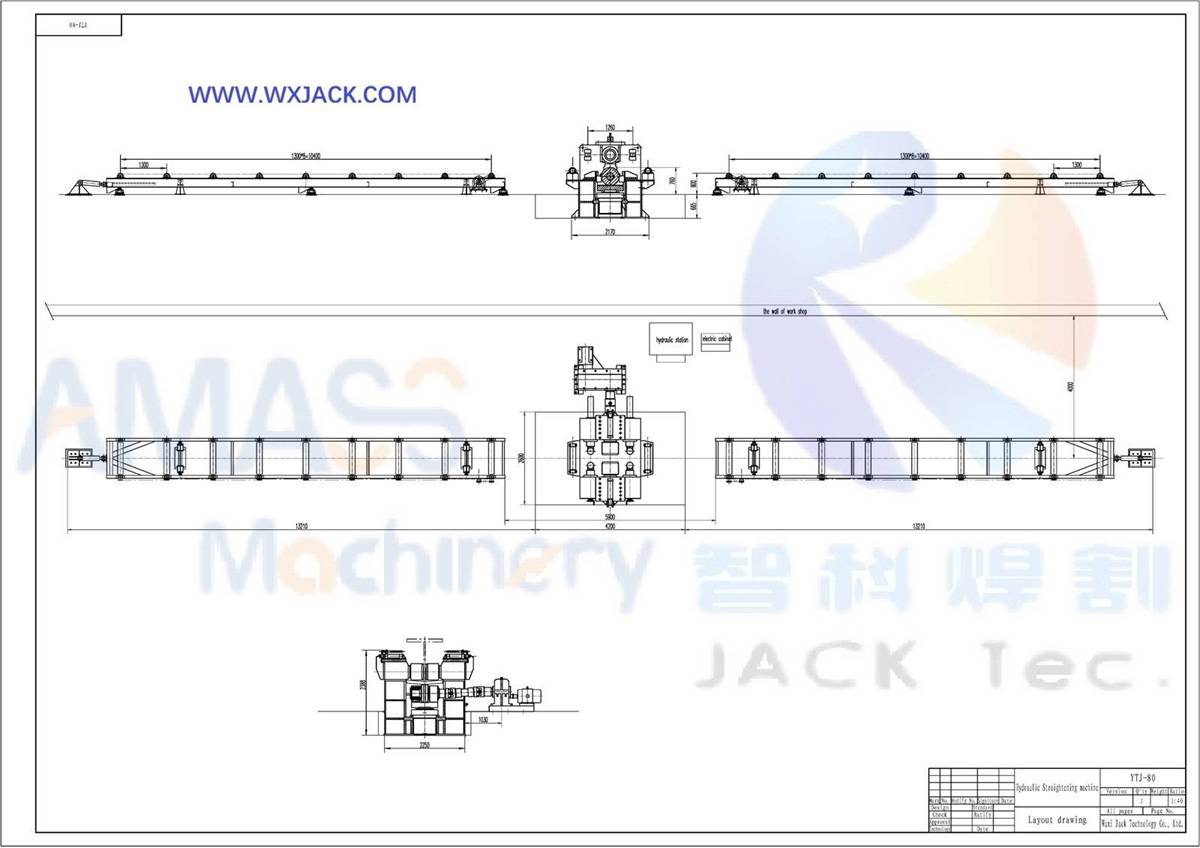

Vertical view on design sketch of HYJ-800 I H Beam Flange Straightening Machine:

 1 H Beam Flange Straightening Machine HYJ-800 Conveyor

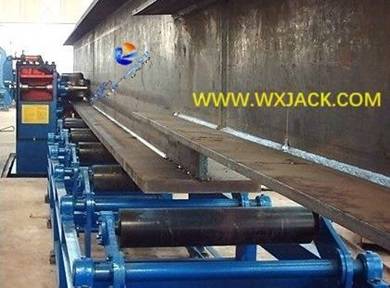

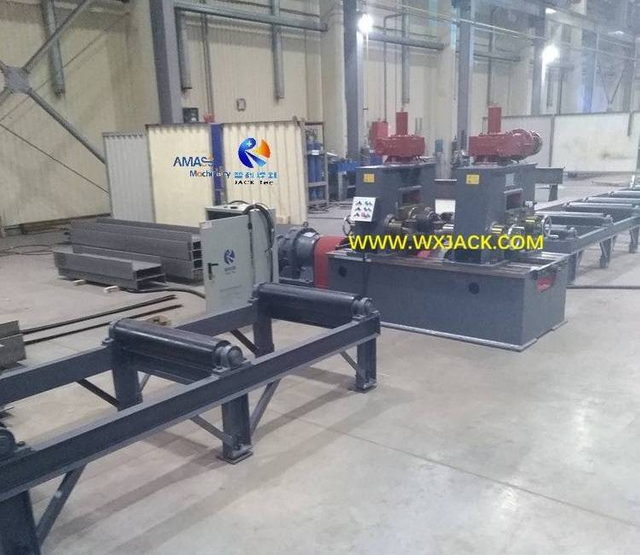

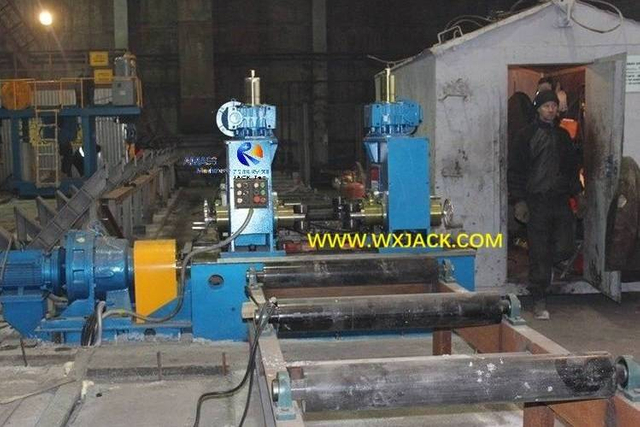

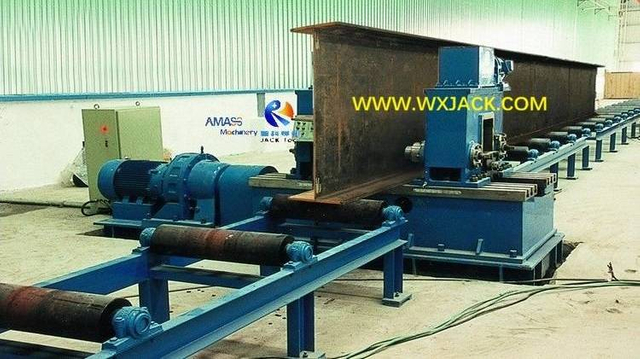

Customer on site photo taken on Wuxi JACK HYJ800 Vertical orientation motor drive I H Beam Straightening Machine in operation:



2. Main Frame of the Vertical Orientation Motor Drive I H Beam Straightening Machine:

Front view on the main frame in design drawing of the I H Beam Flange Straightening Machine:

4 H Beam Flange Straightening Machine HYJ-800

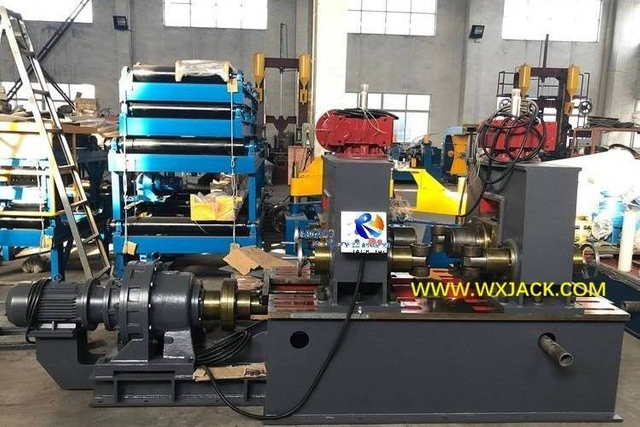

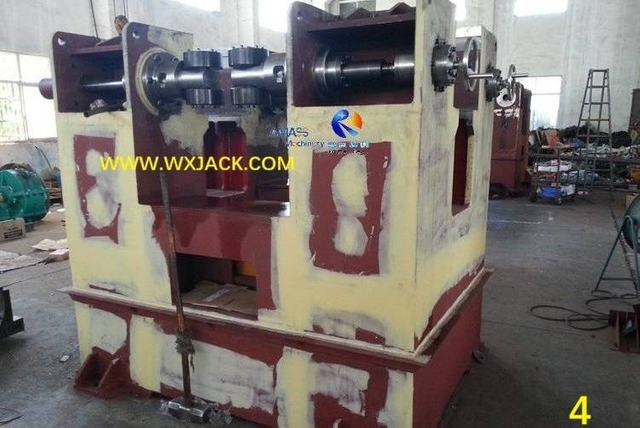

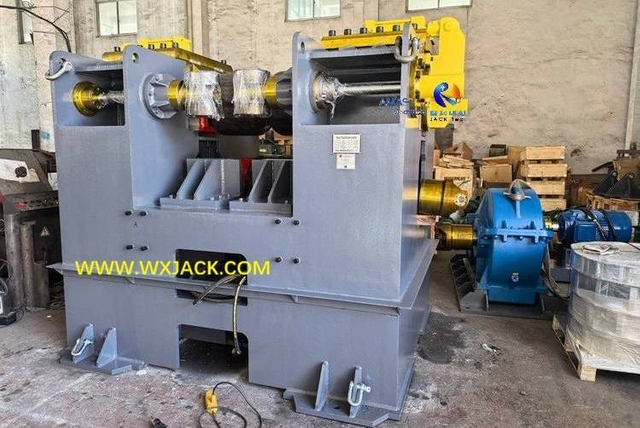

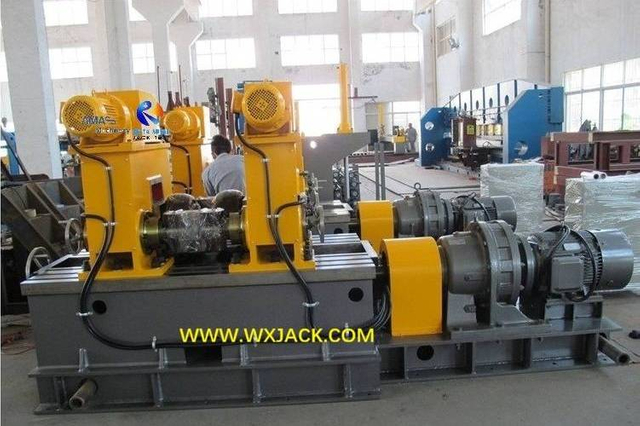

Physical photos of the HYJ-800 Vertical Orientation I H Beam Straightening Machine mechanical main frame taken in Wuxi JACK workshop:


1) As can be seen from the above print and photos, operating height level of the HYJ800 is suitable for adult main operator;
2) This is true with all the types and models of Wuxi JACK Vertical orientation I H Beam Straightening Machine.

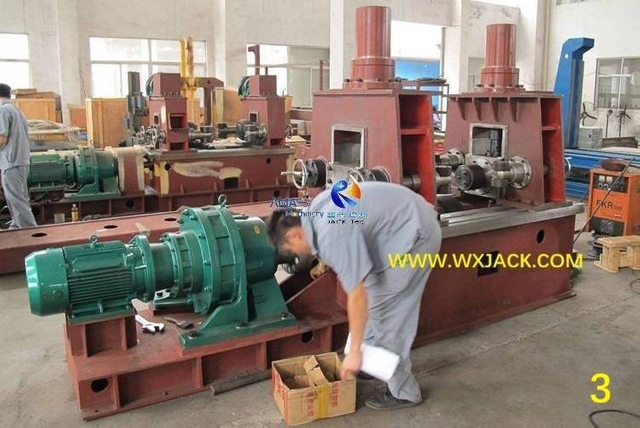

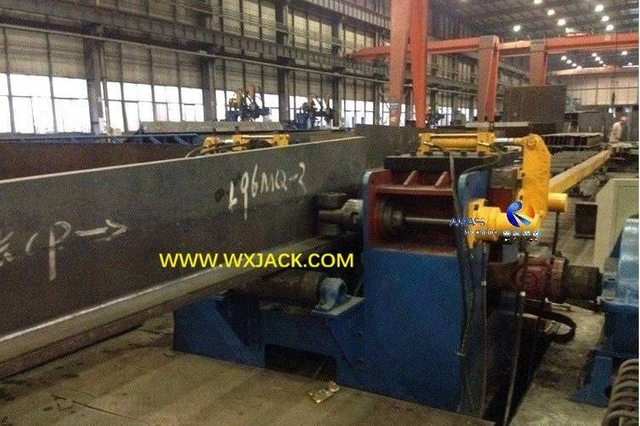

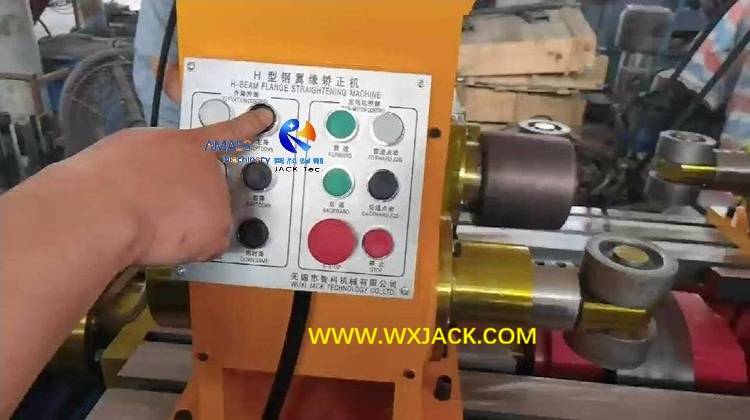

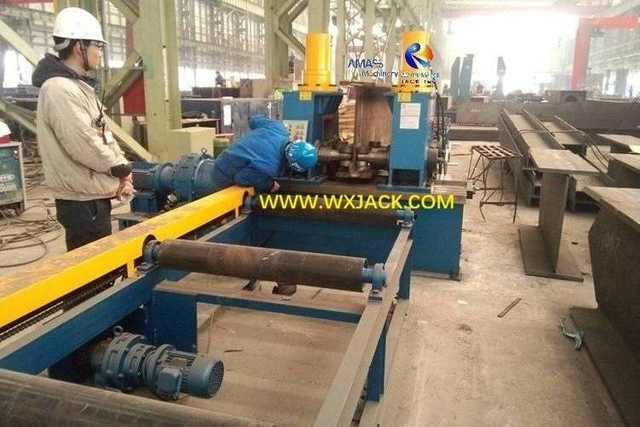

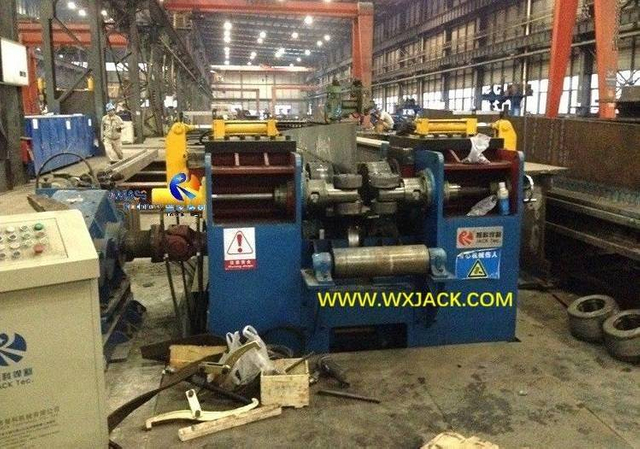

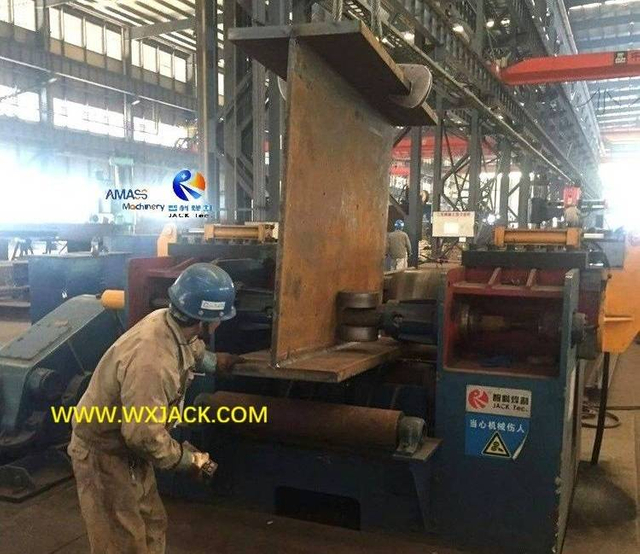

3. On Site Operating Wuxi JACK I H Beam Flange Straightening Machine:

1) As can be seen from the above 1st and 2nd photos, working on I H Beam Flange Straightening Machine is relatively simple;

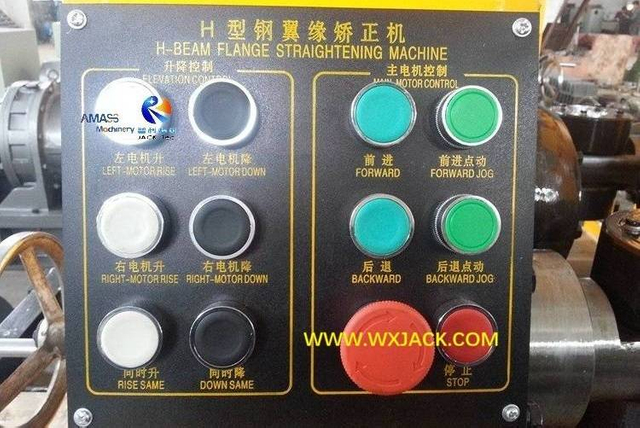

2) The left and right 2 pieces of upper straightening rollers can be adjusted together, or one by one;

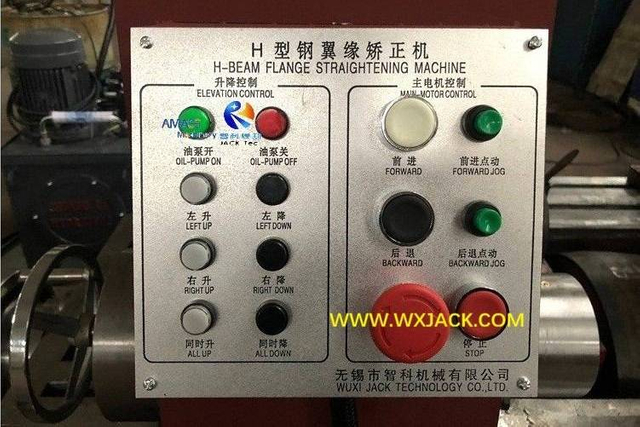

3) Process Control on Straightening Process in Vertical Orientation I H Beam Straightening Machine:

This mainly focus on physical modulation of below two points:
a) Span of the 2 pieces of upper position straightening rollers, to be fitting for different width of H Beam flange;
b) Downward stroke of the 2 pieces of upper position straightening rollers, based on thickness and deformation condition of H Beam flange;
4) Straightening Accuracy Management: These two adjustments can all be checked with measurement rulers installed at cavity of the I H Beam Straightening Machine, please check the 3rd photo;
5) Straightening Times: To straighten flanges deformation of welding H Beam, the workpiece H Beam needs to go through the vertical orientation I H Beam Flange Straightening Machine 2 times, 1 piece of flange to be straightened 1 time.



4. Empirical Data in Wuxi JACK I H Beam Flange Straightening Machine:

1) Rule of Thumb: In all the models of Wuxi JACK Vertical I H Beam Straightening Machine, there is relationship between thickness and width of flange available for straightening, which we give in manual book of each model;
2) For example, below is empirical Data on HYJ-800 Mechanical motor drive Vertical orientation I H Beam Straightening Machine:


 Flange Thickness (mm)  ~ 20 20 ~ 30 30 ~ 35 35 ~ 40
 Flange Width (mm) 200 ~ 800 350 ~ 800 550 ~ 800 650 ~ 800

Working Videos of Wuxi JACK Vertical Orientation I H Beam Straightening Machine

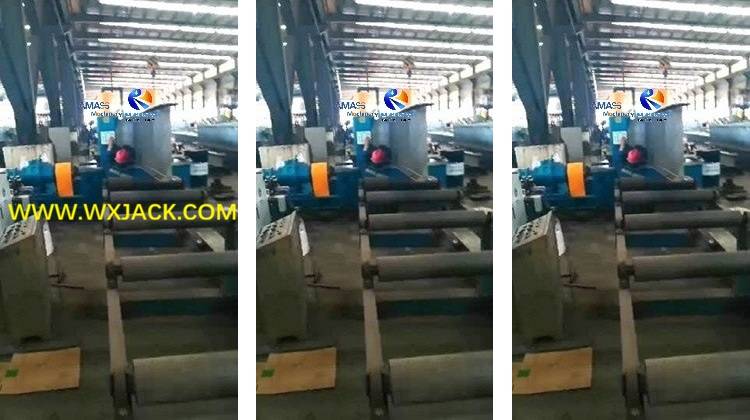

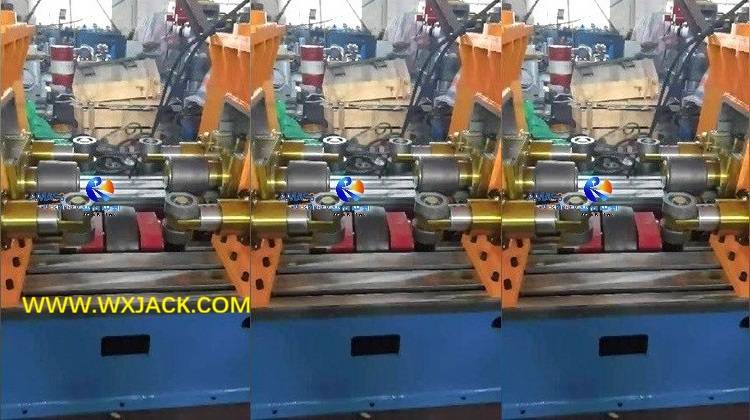

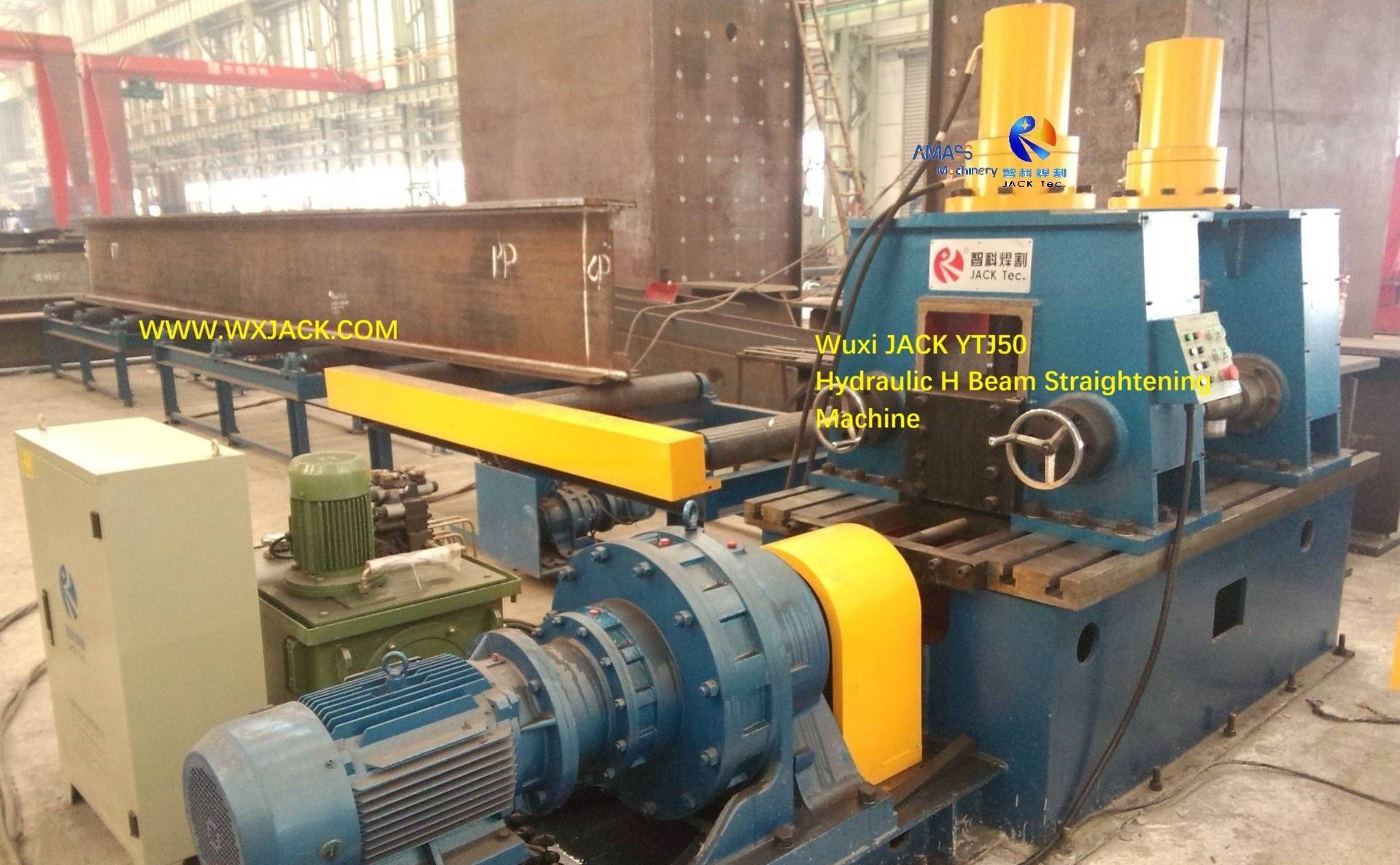

A set of Wuxi JACK YTJ-50 Hydraulic drive I H Beam Flange Straightening Machine in work at customer facility

Workshop commissioning on Wuxi JACK HJ20 H Beam Longitudinal Straightening Machine

Technical Parameters of Wuxi JACK Various Types of I H Beam Flange Straightening Machine

Navigation Bar on “Parameters of I H Beam Flange Straightening Machine”

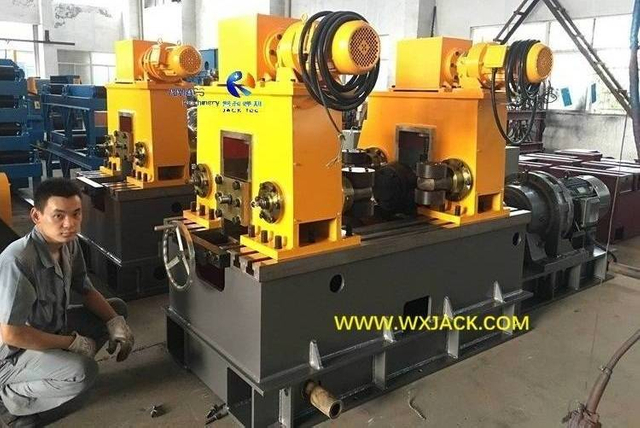

1. HYJ Mechanical Vertical I H Beam Straightening Machine

更多 »

1) Application Volume: HYJ40 and HYJ800 models mechanical type motor drive are the most widely selected models in I H Beam Flange Straightening Machine;
2) The Max. Straightening Capability of this series I H Beam Straightening Machine: 40mm thickness of H Beam flange, tensile strength 510MPa (Chinese grade Q235);
3) Difference between HYJ40 and HYJ800: Straightening speed, 9000 mm/min. (HYJ40) compared with 17,000 mm/min. (HYJ800) I H Beam Straightening Machine.



Technical Parameters of HYJ Series Mechanical Vertical Orientation Motor Drive I H Beam Straightening Machine:

 Model of Mechanical Vertical
 I H Beam Straightening Machine
 HYJ40/ HYJ800
 Straightening Power Source  2 x 1.5 kW A.C. Motor

  Applicable Material

 Q235,
 Tensile strength 370~510MPa

 H Beam Flange Thickness (s)

 6 ~ 40 mm

  H Beam Flange Width (b)

 200 ~ 800 mm

  H Beam Web Thickness (a)

 ≤40 mm

  H Beam Web Height (h)  200 ~ 1,500 mm
  H Beam Length  4,000 ~ 12,000 mm
  Straighten Speed  ≈9,000/ 17,000 mm/min.

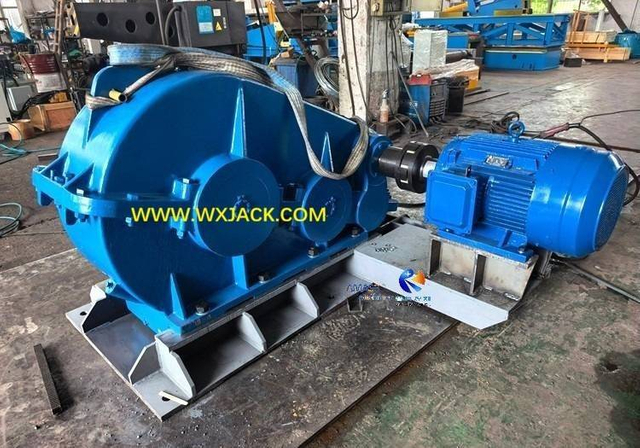

  Main Motor Power  7.5/ 22 kW

2. YTJ Hydraulic Vertical H Beam Straightening Machine

更多 »

1) When to Use: When mechanical type can not meet customer demand, YTJ series hydraulic Vertical I H Beam Straightening Machine are ascending models in terms of straightening capacity;
2) The 4 Classical Models: YTJ-40, and YTJ-50, and YTJ-60, and YTJ-80;
3) The Max. Straightening Capability of YTJ- series I H Beam Straightening Machine: 80mm thickness of H Beam flange, tensile strength 600 MPa (Chinese grade Q345).




Technical Parameters of YTJ Series Heavy duty Hydraulic Drive Vertical Orientation I H Beam Flange Straightening Machine:

 Models of Hydraulic Vertical
 I H Beam Straightening Machine
  YTJ40/ YRJ50/ YTJ60/ YTJ80

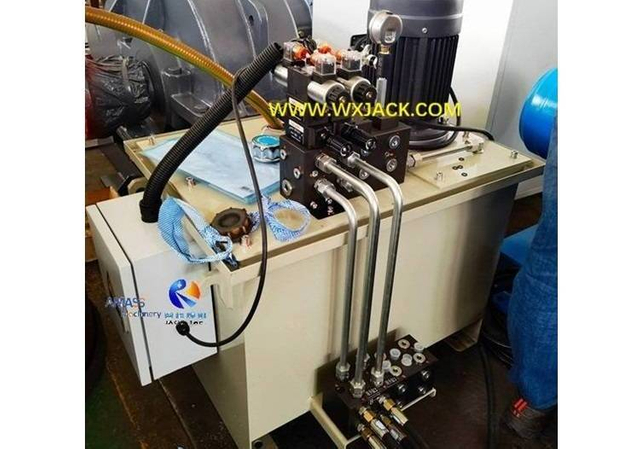

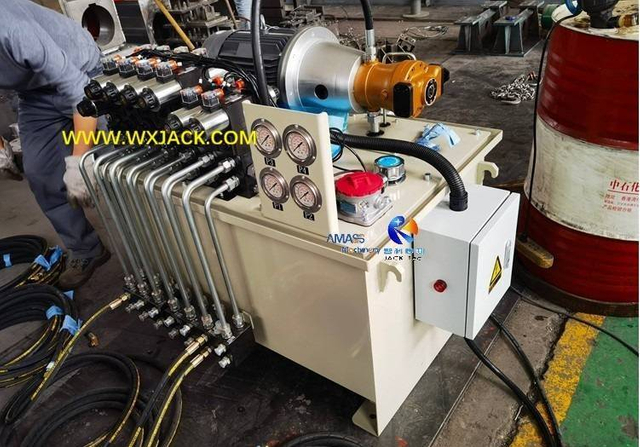

 Straightening Power Source   Hydraulic Pump station
 H Beam Material   Tensile Strength 510~600MPa
 H Beam Flange Thickness (s)  6 ~ 40/ 50/ 60/ 80 mm
 Flange Width (b)  YTJ40/50/60: 200 ~ 800 mm;
 YTJ80: 300 ~ 1200 mm
 Web Thickness (a)  ≤40 / 50/ 60/ 60 mm
 Web Height (h)  YTJ40/50/60:
   ≈ 9000 mm/ min.;
 YTJ80: ≈ 6300 mm/ min.
 Straightening Speed  YTJ40/50/60: 200 ~ 1500 mm;
 YTJ80: 500 ~ 2500 mm

3. WJ Horizontal I H Beam Straightening Machine

更多 »

1) Uniqueness: WJ series hydraulic drive horizontal orientation I H Beam Straightening Machine are niche product: During straightening, workpiece H Beam is laid in horizontal position, instead of vertical as in HYJ and YTJ series;
2) Its advantage is 2 times straightening efficiency as that of vertical orientation I H Beam Straightening Machine;
3) Disadvantage: Horizontal I H Beam Straightening Machine has 50% higher machine price than vertical orientation HYJ and YTJ series;
4) 2 Typical Models: WJ25 and WJ40.





Technical Parameters of WJ Series Horizontal Orientation I H Beam Straightening Machine:

 Model of Horizontal
I H Beam Straightening Machine
 WJ25/ WJ40
 Straightening Speed  6000 mm/min.
 Straightening Drive Motor  7.5kW* 2 sets /
 15kW* 2 sets
 Straightening Drive Torque  5600N.m. * 2 sets /
 11000N.m. * 2 sets
 Hydraulic Pressure  16 MPa
 Roller Lift type  By motor and reducer
 Hydraulic Station Power  7.5 kW
 Input Roller Table Power  2.2kW * 2 sets
 Output Roller Table Power  2.2kW * 2 sets

Application and Related Equipment of I H Beam Flange Straightening Machine

1. Application: I H Beam Flange Straightening Machine is applied in welding H Beam production only;

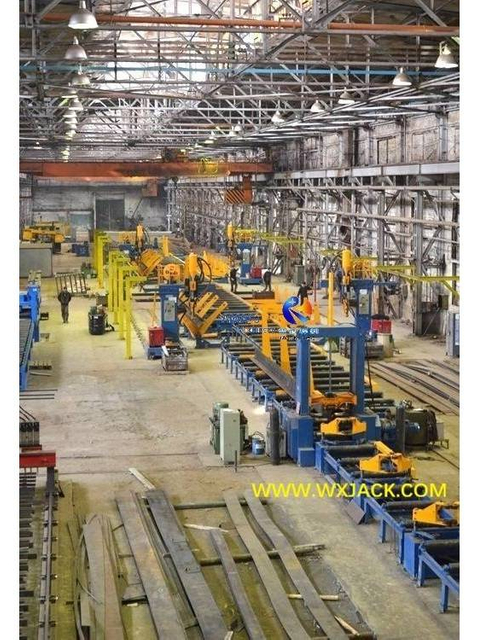

2. Working Station: In the layout of typical H Beam Production Line, I H Beam Straightening Machine is situated at end of line;

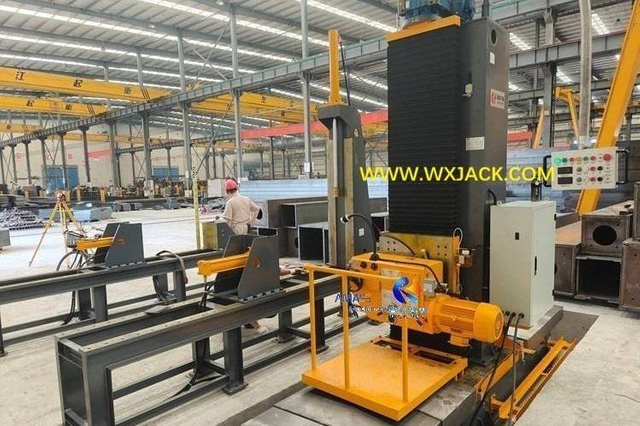

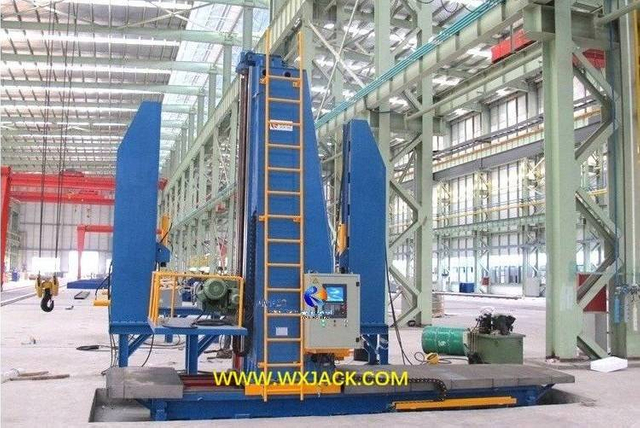

3. Related Equipment: The equipment preceding it is H Beam SAW Welding Machine; The equipment following it is H Beam End Face Milling Machine;

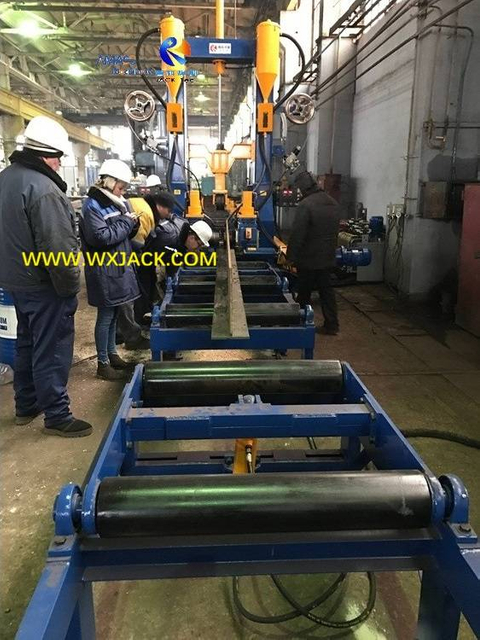

4. The new generation product of 3 in 1 H Beam Fabrication Machine (H Beam 3 in 1 Assembly Welding Integral Machine) incorporates function of motor drive vertical orientation I H Beam Straightening Machine, but works in much slower pace, equal to working velocity of H Beam assembly and H Beam welding.

FAQ on Wuxi JACK I H Beam Flange Straightening Machine

  • Q 无锡智科科技有限公司与无锡amass机械有限公司之间的关系是什么?

    A 无锡智科于2009年初建立,专门从事设计和制造。无锡Amass是公司专业从海外销售智科产品和其他涉及的产品。
  • Q 你的服务术语是什么?

    A 1)我们的所有产品免费接受客户的1年保修;
    2)我们继续在保修期限到期时为客户提供最佳服务
    最好的价钱;
    3)我们为客户提供最优惠的价格;
    4)在从客户收到信息后,我们的响应时间在2小时内
    中国大陆客户,在1天内最长(取决于时区)
    对于海外客户;
    5)我们为我们的产品提供服务,调试和培训;
    6)我们向客户咨询所有涉及的技术问题
  • Q 你有海外分公司还是出售办公室?

    A 目前没有。但我们在俄罗斯和中亚有超过10年的长期合作伙伴,我们拥有非常广泛的客户群。 (他们是当地公司,他们分发和帮助我们的产品)
    要对我们的产品进行任何询问,请使用上面列出的联系方式。我们将在收到您的询问时给您24小时内的反馈。
  • Q 您有产品清单吗?

    A 由于我们的产品是订购类型的工程,我们目前没有价格表。有关我们产品的详细信息,您可以访问本网站的产品浏览;您可以从下载下载本网站的信息下载。
    如果您对我们的产品有任何要求,请在方便的时候与我们联系。
  • Q 您公司的服务范围是什么(产品,应用和商业模式)?

    A 设备和设备的设计和销售(包括售后服务):
    金属板/管/梁焊接/切割/加工设备;

    H光束组件焊接矫直一体机;
    板屁股加入机;
    梁端面铣床;
    H光束生产线(包括装配机,龙门型埋弧焊机,矫直机,钢制输送机);
    CNC管道切割机;
    CNC /带板火焰/等离子切割机;
    箱梁生产线(包括装配机),电渣焊机,埋弧焊机,梁端面铣床);
    T梁生产线(包括装配机,埋弧焊机/二氧化碳焊接机);
    焊接车削辊;
    焊接机械手;
    焊接定位器;
    各种专用焊接机

    这些设备广泛应用于工业钢结构,船舶建筑,桥梁建筑,压力容器,石化等。

Other Products We Own besides I H Beam Flange Straightening Machine

1、MP20全自动板对接接头钢板拼接焊接机的应用:
2、MP系列对接接头钢板拼焊机的结构和工作原理:
3、MP20 全自动 钢板拼接机(钢板平面对焊机)的技术参数:
0
0

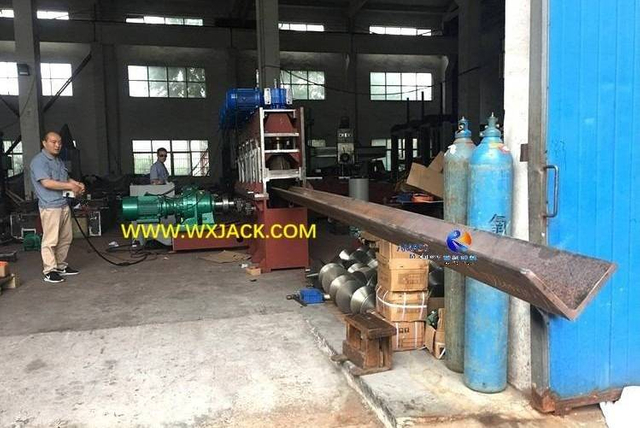

一、ASM63角钢校直机能为客户做什么?
二、角钢矫直机的巨大价值:
三、ASM系列角钢矫正机的优点和应用:
四、ASM63角钢矫直机的技术观点:
五、ASM63角钢矫直机的技术参数:
0
0
A、7 轴 3000/12 火焰等离子大型数控相贯线切割机的独特性:
B、开发成熟的 7 轴 3000/12 火焰等离子大型数控切管机面临的挑战:
C、CNC-CP7-3000/12 火焰等离子7轴大型数控相贯线切割机的 7 轴数控系统:
D、无锡智科火焰等离子7轴大型数控相贯线切割机的人性化设计:
E、CNC-CP7-3000/12大型火焰等离子7轴相贯线切割机的技术参数:
0
0
一、HB系列通用焊接变位机的定义及特点:
二、HB系列通用回转焊接变位机的技术特点:
三、HB系列单回转焊接台焊接变位机的技术参数:
0
0

I H Beam Straightening Machine Blogs

  • H型钢拼接焊接矫正一体机 应用在钢结构行业中的优点
    1) 三合一H型钢组立焊接矫正一体机的先进技术; 2) 三合一H型钢拼焊矫一体机在财务方面的优点; 3)三合一H型钢组焊矫一体机的强大生产能力; 4) 立式三合一H型钢一体化功能焊接机的工作方式及操作; 5) 总结:无锡智科三合一H型钢拼接焊接矫正一体机的技术优势 更多
  • H型钢拼焊矫一体机概述
    1) H型钢拼焊矫一体机为何如此受欢迎? 2) H型钢拼焊矫一体机的定义和概述 3) H型钢拼焊矫一体机的市场需求 4) H型钢拼焊矫一体机的工作顺序 5) 无锡智科H型钢拼焊矫一体机的总结 更多
  • 在使用H型钢拼焊矫一体机之前的准备工作
    1) H型钢组焊矫一体机环境工作条件; 2) H型钢拼焊矫一体机的供电要求; 3) H型钢拼焊矫一体机的配套行车; 4) H型钢组焊矫一体机的基础及安装; 5) H型钢拼焊矫一体机的润滑; 6) H型钢组焊矫一体机工作时所需的焊接耗材 更多
首页
无锡亚玛斯机械有限公司
无锡智科科技有限公司
0510-83297829
国外:15852755799
内地:13621515089
中国江苏省无锡市惠山区洛社镇杨市扬东路2号
联系我们
©无锡智科科技有限公司 2021版权所有
备案证书号: 苏ICP备13045244号-1
